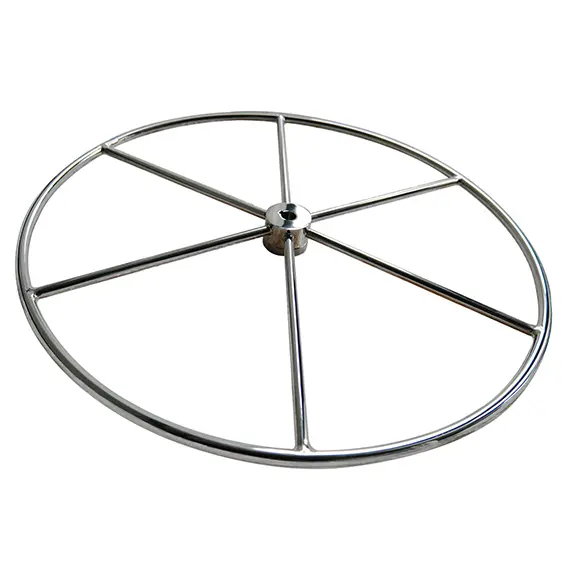

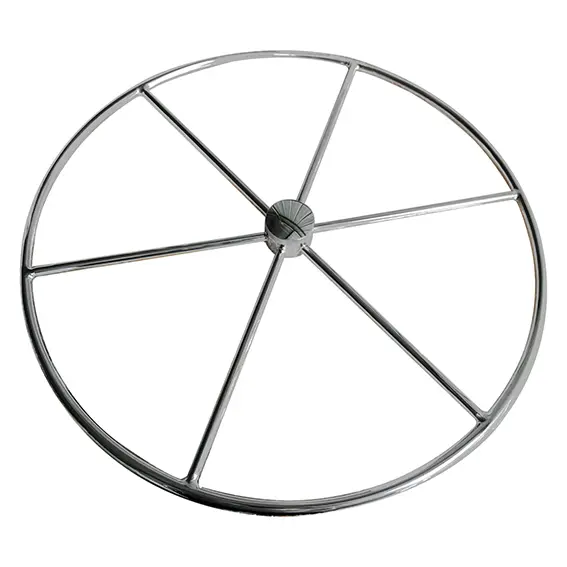

XH0628A Steering Wheel

Product details

product catalogue name: Steering Wheel XH0628A

Materials and Craftsmanship

Crafted from high-quality stainless steel, this product combines high strength, high toughness, and excellent corrosion resistance. It is designed to perform reliably over extended periods in harsh marine environments—such as those with high humidity or salt spray—without rusting or warping. The manufacturing process is highly sophisticated, utilizing precision metal forging and welding techniques to integrate stainless steel tubing and components into a uniform wheel-shaped structure, with all weld points secure and smooth. The surface undergoes a fine polishing process, resulting in a brilliant metallic luster with a smooth, burr-free texture. This ensures structural stability while enhancing both the aesthetic refinement and the tactile feel during operation.

Design and Functionality

The spoke-style structural design features multiple spokes evenly distributed from the center to the edges, offering excellent mechanical performance. This effectively distributes operational forces, making control more effortless. The center connection component is ingeniously designed to securely interface with the steering gear system, ensuring precise power transmission. As the core control component of a marine steering gear system, it allows operators to turn the steering wheel to accurately transmit steering commands and control the vessel’s direction. The spoke-style design not only enhances operational convenience but also maintains structural stability during long-term use, preventing damage caused by uneven stress distribution.

Application Scenarios

Primarily used in the marine sector, it serves as a critical control component for various ship steering systems. On small yachts, sailboats, and similar vessels, it provides crew members with an intuitive and convenient method of steering control, allowing for flexible course adjustments during navigation. On commercial vessels such as small cargo ships and passenger ships, it ensures precise and reliable steering operations during port berthing and navigation through waterways. Additionally, these steering wheels are commonly used in marine navigation simulation training equipment to provide trainees with a realistic control experience, thereby enhancing their navigational skills.

Core Advantages

Durable and Robust: The combination of high-quality stainless steel and expert welding techniques gives the steering wheel excellent impact resistance and corrosion resistance, ensuring long-term, stable performance in marine environments and reducing maintenance and replacement costs for ship equipment.

Effortless Operation: The spoke-style design effectively distributes operating force, allowing crew members to turn the wheel with minimal effort. This reduces fatigue during prolonged operation and enhances the navigation experience.

Precise Power Transmission: The precision-engineered central connection ensures accurate power transfer between the wheel and the steering gear system, enabling responsive and precise vessel steering and ensuring navigation safety.

High Compatibility: Thanks to its superior performance and standardized design, it is compatible with a wide range of vessel steering gear systems, meeting diverse steering control requirements and offering strong versatility.

Specifications & project fit

The original listing does not include a complete specification table. Request the current dimensional drawing and confirm the requirements below before selection.

Listed dimensions and options are carried over from the existing catalogue and require confirmation for the selected model. Unverified certification, output and lead-time claims are not carried forward as guarantees.
