Product details

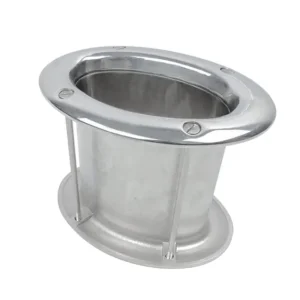

product catalogue name: Cable Guide XHDSK
Materials and Craftsmanship
This cable guide is crafted from metal designed to withstand the harsh, high-salt-fog environment of the marine environment. Its polished surface not only enhances the sleek, refined appearance but also reduces the risk of corrosion in the damp, salt-fog-laden conditions typical of ships, making it suitable for long-term outdoor use. The main body combines one-piece molding with assembled components, resulting in a cylindrical structure with excellent density that enhances overall impact resistance and resistance to deformation; The connection between the top flange and the support components has been reinforced to ensure structural stability under load. Additionally, the mounting interfaces of the fittings are precisely machined for seamless integration with the ship’s structure. Carefully rounded edges and corners minimize wear caused by cable friction, balancing durability with protection for the rigging.
Design and Functionality

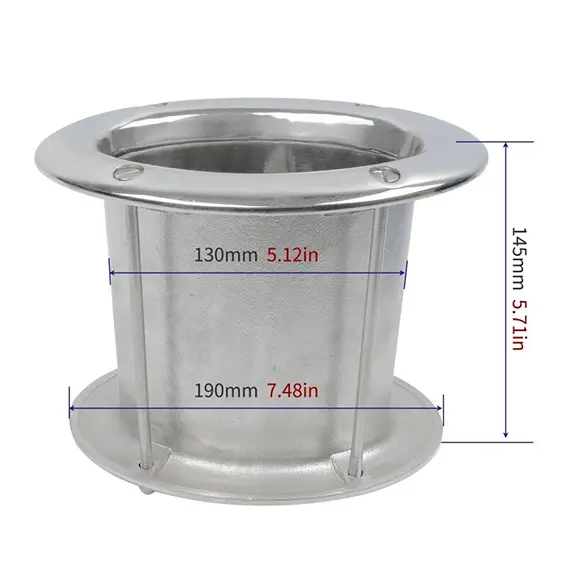

The design features a cylindrical body paired with a wide-flanged top. The cylindrical structure guides the rope along a fixed path, minimizing contact and abrasion with other hull components. The wide-flanged top increases the contact area with the hull, enhancing stability after installation, while also providing a restraining effect to prevent the rope from slipping out. Core functions focus on rope guidance and protection, standardizing the rope’s path during deployment and retrieval to reduce wear caused by misalignment. It also helps distribute the rope’s tensile force, alleviating stress on single points of contact. Its open structure allows operators to easily monitor the rope’s condition, meeting the need for rapid rope adjustments during vessel operations.
Application Scenarios
During vessel berthing operations, it can be installed at the edge of the deck or along the ship’s side to guide the rope to the wharf mooring bollard and standardize the rope’s path; During anchoring operations, it can be used in conjunction with anchor chains to assist in guiding the chain’s deployment and retrieval path; furthermore, in cargo loading/unloading or cargo transfer scenarios, it meets the guidance requirements for lifting slings, reducing friction between the slings and the ship’s structure. It is one of the most fundamental auxiliary tools for ship deck operations and can also be used as part of the mooring systems for certain small vessels.
Core Advantages
Its core advantages are primarily reflected in environmental adaptability. The combination of metal materials and surface treatments allows it to withstand the complex marine environment effectively, minimizing performance degradation over time. Secondly, it offers practical functionality: the cylindrical structure not only ensures effective cable guidance but also reduces the likelihood of cable wear, thereby extending the service life of the rigging; Additionally, installation and operation are straightforward, requiring no complex auxiliary equipment to begin operation. This meets the demands for efficiency and flexibility in ship deck operations, balancing ease of use with adaptability to various scenarios.
Specifications & project fit
The original listing does not include a complete specification table. Request the current dimensional drawing and confirm the requirements below before selection.
Mounting
Connection dimensions, fixing centres and installation clearance.
Material & finish
Confirm the selected material, grade, finish and care requirements.
Acceptance
Define dimensions, load or service requirements and required records.
Delivery scope
Agree model, quantity, packaging and the proposed schedule.
Listed dimensions and options are carried over from the existing catalogue and require confirmation for the selected model. Unverified certification, output and lead-time claims are not carried forward as guarantees.
