Product specifications
| Material | Duplex stainless steel 2205, Stainless steel 304/316 |
|---|---|
| Application | Suitable for all kinds of indoor and outdoor handrails and balustrades, etc. |
| Item Number | Diameter (mm) · U Size (mm) · Thickness (mm) |
| LS-S01-M/S/B/G/W | 25.4 · 14*14 · 1.2 |
| LS-S02-M/S/B/G/W | 38.1 · 15*15 · 1.2 |
| LS-S03-M/S/B/G/W | 42.4 · 24*24 · 1.2 |
| LS-S04-M/S/B/G/W | 48.3 · 27*30 · 1.2 |
| LS-S05-M/S/B/G/W | 50.8 · 15*15 · 1.2 |
| LS-S07-M/S/B/G/W | 38.1 · 15*15 · 1.5 |
| LS-S08-M/S/B/G/W | 42.4 · 24*24 · 1.35 |
| LS-S09-M/S/B/G/W | 48.3 · 30*27 · 1.2 |
| LS-S10-M/S/B/G/W | 50.8 · 20*20 · 1.2 |
| LS-S11-M/S/B/G/W | 63.5 · 18.5*21 · 1.2 |
| LS-S12-M/S/B/G/W | 60.3 · 34*34 · 1.35 |
| LS-S14-M/S/B/G/W | 76.2 · 26*25 · 1.35 |
| Finish | Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror |
| Casting Process | Silica Sol Technics with Lost-wax Process |
About this component

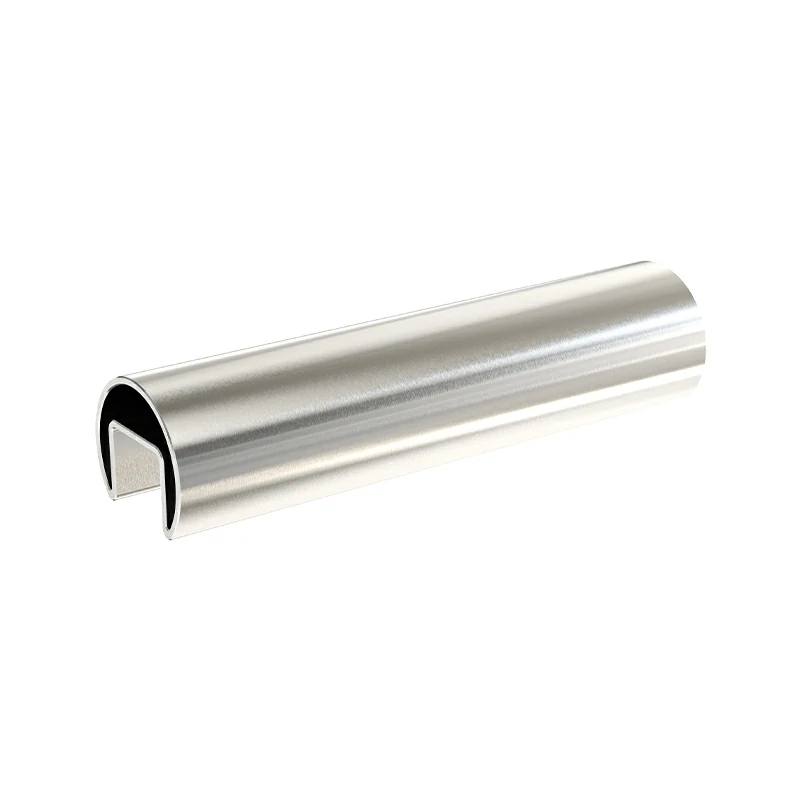

Stainless Steel Slotted Handrail Tube is supplied for configuration review and quotation. The product specifications list material options Duplex stainless steel 2205, Stainless steel 304/316.
Confirm the selected size, finish and mating components when requesting a quote. Where drawings show several variants, identify the exact version needed for the installation. Product suitability depends on the complete assembly and its project requirements.
Prepare your enquiry
- Product model, required quantity and preferred finish.
- Installation dimensions and the mating glass, tube, panel or support configuration.
- Selected drawing variant, accessories required and delivery location.
